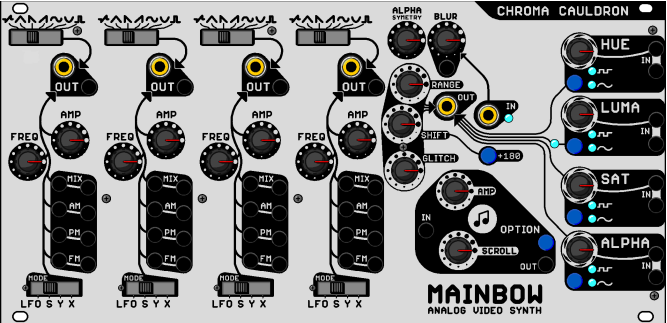

Chroma Cauldron Mainbow Analog Video Synth
Mainbow is a Eurorack video synth module consisting of four function generators and a wavefolding NTSC/PAL video encoder. Hue, saturation, luminance, alpha colour space. Alpha represents transparency over an external video signal. All signalling is LZX compatible 0-1v. It also contains glitch effects and filters for producing music responsive patterns.

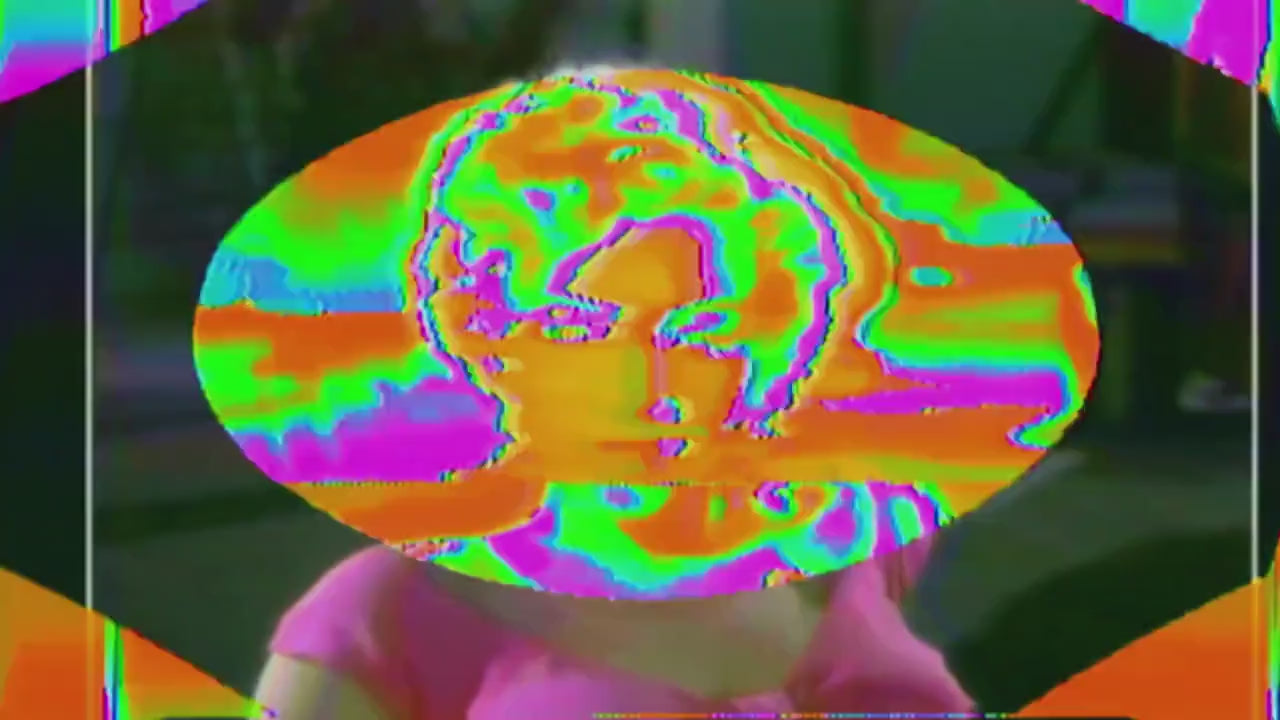

Each function generator can produce seven waveforms with phase, frequency, amplitude, and mix modulation. Elaborate patterns emerge when they modulate each other. Function generators output a monochrome video signal in addition to a 0-1v signal.
Dimensions: 3U x 52HP (128.5 x 260 x 18 mm)
Power supply minimum requirements: 240 mA from +5v and 200mA from -12v.
This is an improved 2.0 version. Improvements: Automatic genlock, higher video stability, both NTSC and PAL are supported on all units, aluminum faceplate, larger panel, nicer knobs, options menu.
This is a module only. It requires a Eurorack case and power supply to operate.
